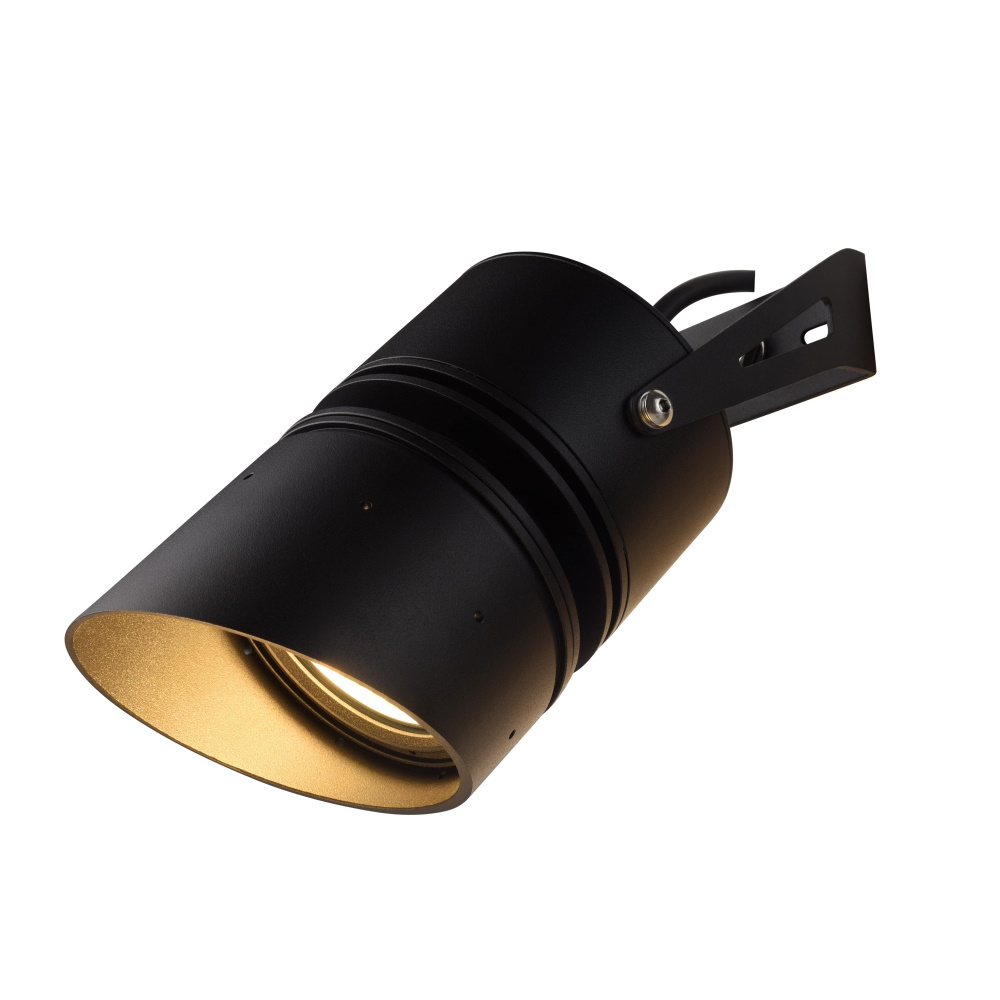

Titan15 is an adjustable spike-mount 240v led spotlight with an aluminium body and glare shield powder-coated in black.
It has a high-efficiency COB led in a focused 36 degree beam for uplighting trees and focal points. Built-in CREE LED 60,000 hours.
240v Spike spotlights need their own circuit from an existing or new fuse box.
The box must be protected by a residual current device (RCD) and controlled with a double-pole isolating switch.
As a general rule of thumb, the armoured cables need to be run underground- at least 450mm with weatherproof junction boxes.
Use an electrician qualified under 'Part P' building regulations to install any mains electricity outdoors who will certify the work properly.
IP rating
|
IP65
|
Construction
|
Black-powder coated aluminium body with glare shield and mounting spike
|
Input
|
240v
|
Light output
|
814 lumens Non dimmable
|
Beam angle
|
36°
|
Installation
|
Stirrup bracket mounts on walls or the ground spike supplied. A 2m input cable is provided for connection to the mains supply via a separate weatherproof junction box or underground joint kit (not supplied).
Using a single RCD for large numbers of 240v fittings is not recommended due to the risk of nuisance tripping. We advise the use of separate RCD protection for each circuit and a maximum of 12 fittings per RCD.
|
