Elipta Stella Bollard Light - Graphite

Elipta Stella Bollard Light - Graphite

Product No: EH8363-650

Out of stock

Stella bollard light – 240v E27 – Powder coated Graphite Grey finish.

  • Elipta 7w LED Candle Lamp 2700K 650lm - Non-dimmable 240v
    £19.80
    £16.50

    Elipta 5.9w LED Candle Lamp 470lm 2700K 240v Non-dimmable
    £14.40
    £12.00

  • Elipta IP66 Junction Box c/w Terminals / Entries - 85 x 85 x 50mm - Black
    £9.00
    £7.50

    Elipta IP66 Junction Box c/w Terminals / Entries - 110 x 110 x 65mm - Black
    £15.60
    £13.00

    Elipta Copper Grease Sachet 30cc
    £1.44
    £1.20

    Elipta Underground Joint Kit c/w Resin Sealant Pack
    £22.80
    £19.00

    Elipta IP68 Cable Gland c/w Lock Nut - 20mm
    £0.60
    £0.50

    Elipta MPGEL Re-Enterable Clear Sealant 1 Litre Bottle
    £50.40
    £42.00

    Elipta Burial Resin Sealant Pack 350ml
    £18.00
    £15.00

    Elipta 6 Way IP68 Round Junction Box c/w M16 Cable Glands
    £18.60
    £15.50

    Elipta Shark Gel Insulated Joint 6A
    £11.40
    £9.50

    Elipta Shark Gel Insulated Joint 13A
    £23.76
    £19.80

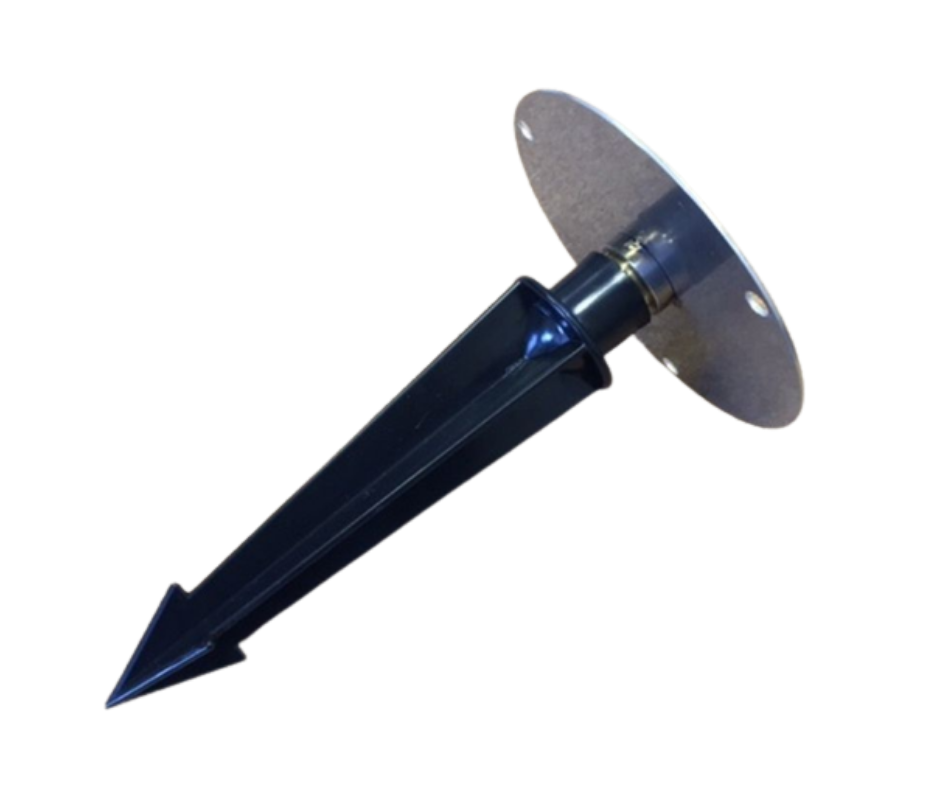

    Elipta Round Base Plate St.St. with Polycarbonate Spike
    £25.20
    £21.00

    Elipta 3 Pole IP68 In-Line Cable Connector
    £12.36
    £10.30

    Elipta 3 Pole IP68 In-Line Cable Connector 'Y' Split
    £9.60
    £8.00

  • Product Overview

    • The Stella is a E27 version for 240v energy-saving, long life compact fluorescent lamps up to 15 watts - recommended for driveway and path lighting, especially if timer-operated for long periods. This minimises energy consumption and lamp replacement. The bollard may be bolted to paving or decking (anchors supplied) or fixed into wet concrete or soft ground with an optional ground-spike (purchase separately)

    Colour/Finish: Graphite Grey powder coated aluminium
    IP Rating: IP54
    Construction: Machined from solid metal tubing polycarbonate diffuser is framed by top cap, louvres and screw-on base ring which allows the top to be unscrewed for easy lamp replacement.
    Input Voltage: 240v
    Lamp Type: E27 240v energy-saving, long life compact fluorescent lamps up to 20 watts or E27 LED lamps. (Order lamps separately)
    Installation: Pre-wired with 2m rubber cable for connection via T9969 underground joint kit: the installer may shorten the fitted cable to make a weatherproof connection inside the base of the light using a gasketed 65mm conduit box or similar weatherproof junction box.

    Using a single RCD for large numbers of 240v fittings is not recommended due to the risk of nuisance tripping. We advise the use of separate RCD protection for each circuit and a maximum of 12 fittings per RCD. Where a garden lighting installation of more than 12 spike mount or recessed lights per circuit is proposed, we suggest the installation of 12v units with transformers, which results in a significantly higher fault tolerance and reliability in the total installation
