Spike12 Garden Spotlight - 240v - 12w - 1250lm - 40° - 2700K - IP67 - Anodised Anthracite

EP41240MV

Spike12 garden spotlight low voltage 240v - 12w -1250lm-40°-2700K. IP67 outdoor LED spotlight constructed from diecast aluminium with an anodised anthracite finish.

£63.70 (exc vat) £76.44 (inc vat)
New Product - Due Mid January 2020

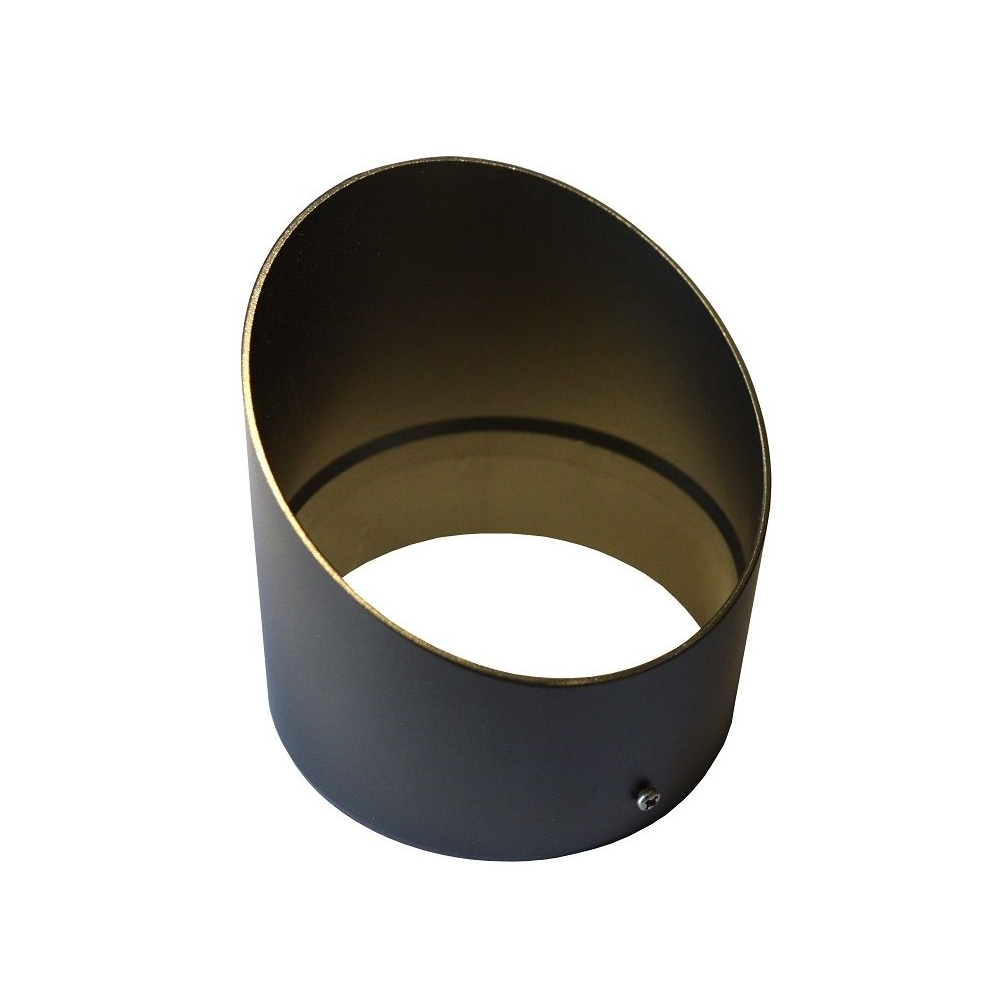

The Elipta Spike12 LED spike spotlight has a modern yet discrete anodised finish make it a suitable fitting for both modern and traditional garden settings.  Extra glare protection is available with the use of the EPGS65 glare shield.  By removing the spike from the fitting, it can be mounted onto a pergola and used for spotlighting down on a subject.
240v Spike spotlights need their own circuit from an existing or new fuse box. The box must be protected by a residual current device (RCD) and controlled with a double-pole isolating switch. As a general rule of thumb, the armoured cables need to be run underground- at least 450mm with weatherproof junction boxes. Use an electrician qualified under 'Part P' building regulations to install any mains electricity outdoors who will certify the work properly.

Colour/Finish: Anodised Anthracite
IP Rating: IP67
Construction: Diecast aluminium with anodised anthracite finish
Input Voltage: 240v
Wattage: 12w
Light Output: 1250lm
Beam Angle: 40°
Colour Temp: 2700K
Life Span: Approximately 50,000 hours
Installation:
Stirrup bracket mounts on walls or the ground spike supplied. A 2m input cable is provided for connection to the mains supply via a separate weatherproof junction box or underground joint kit (not supplied).

Using a single RCD for large numbers of 240v fittings is not recommended due to the risk of nuisance tripping. We advise the use of separate RCD protection for each circuit and a maximum of 12 fittings per RCD.
